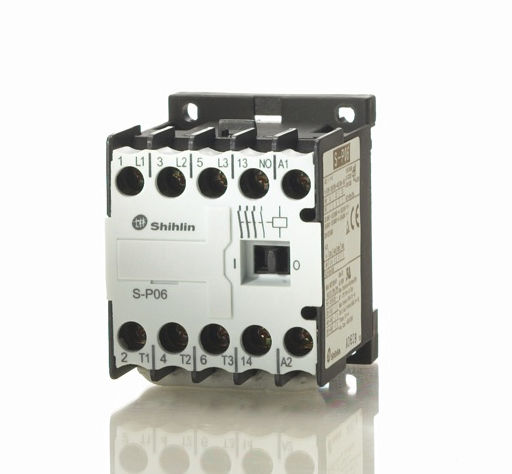

SHIHLIN

S-P06

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P06
Rated Power/Current(AC3/3Φ380V):3kW、4HP、6A
Auxiliary contact:Standard 1a(1NO)、Special 1b(1NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times
TYPE:S-P06
Rated current(AC1)、Current convention fever:20A
Current convention fever(Auxiliary contact):10A

Chi tiết
S-P09

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P09
Rated Power/Current(AC3/3Φ380V):4kW、5,5HP、9A
Auxiliary contact:Standard 1a(1NO)、Special 1b(1NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times
Rated current(AC1)、Current convention fever:20A
Current convention fever(Auxiliary contact):10A

Chi tiết
S-P11

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P11
Rated Power/Current(AC3/3Φ380V):5,5kW、7,5HP、12A
Auxiliary contact:Standard 1a(1NO)、Special 1b(1NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times
Rated current(AC1)、Current convention fever:20A
Current convention fever(Auxiliary contact):10A

Chi tiết

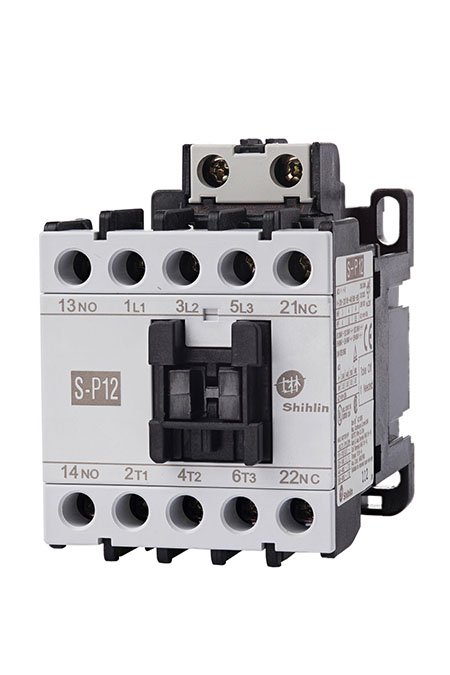

S-P12

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P12
Rated Power/Current(AC3/3Φ380V):5,5kW、7,5HP、12A
Auxiliary contact:Standard 1a(1NO)、Special 1b(1NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times
Rated current(AC1)、Current convention fever:20A
Current convention fever(Auxiliary contact):10A

Chi tiết
S-P16

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P16
Rated Power/Current(AC3/3Φ380V):7,5kW、10HP、16A
Auxiliary contact:Standard 1a(1NO)、Special 1b(1NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times
Rated current(AC1)、Current convention fever:20A
Current convention fever(Auxiliary contact):10A

Chi tiết
S-P21A

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P21A
Rated Power/Current(AC3/3Φ380V):11kW、15HP、24A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P35T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P35T
Rated Power/Current(AC3/3Φ380V):15kW、20HP、35A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết

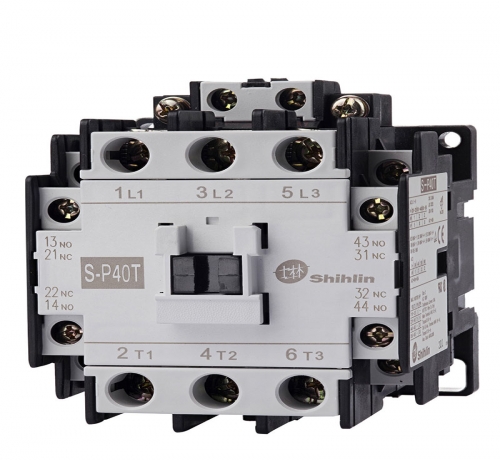

S-P40T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P40T
Rated Power/Current(AC3/3Φ380V):22kW、30HP、44A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P50T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P50T
Rated Power/Current(AC3/3Φ380V):30kW、40HP、58A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P60T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P60T
Rated Power/Current(AC3/3Φ380V):37kW、50HP、68A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P80T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P80T
Rated Power/Current(AC3/3Φ380V):40kW、54HP、80A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P100T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P100T
Rated Power/Current(AC3/3Φ380V):60kW、80HP、105A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P125T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P125T
Rated Power/Current(AC3/3Φ380V):75kW、100HP、135A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
S-P150T

Giá: Liên hệ

Số lượng tồn: Liên hệ

TYPE:S-P150T
Rated Power/Current(AC3/3Φ380V):90kW、125HP、160A
Auxiliary contact:Standard 2a(2NO)、Special 2b(2NC)
standard:GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage:660V
Coil control voltage:AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3:1.2 million times
Mechanical life:6 million times

Chi tiết
