Giá: Liên hệ
Số lượng tồn: Liên hệ

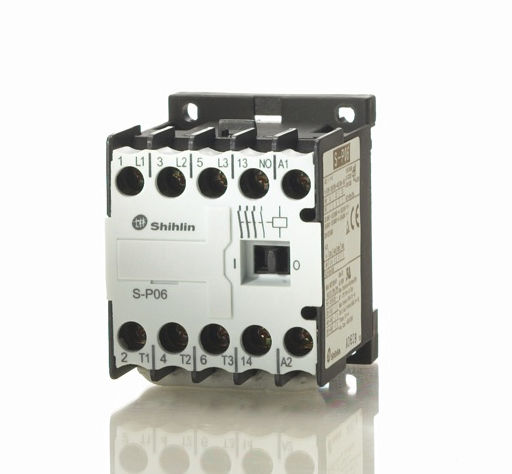

TYPE：S-P06
Rated Power/Current(AC3/3Φ380V)：3kW、4HP、6A
Auxiliary contact：Standard 1a（1NO）、Special 1b（1NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
TYPE：S-P06
Rated current（AC1）、Current convention fever：20A
Current convention fever（Auxiliary contact）：10A
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P09
Rated Power/Current(AC3/3Φ380V)：4kW、5,5HP、9A
Auxiliary contact：Standard 1a（1NO）、Special 1b（1NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Rated current（AC1）、Current convention fever：20A
Current convention fever（Auxiliary contact）：10A
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P11
Rated Power/Current(AC3/3Φ380V)：5,5kW、7,5HP、12A
Auxiliary contact：Standard 1a（1NO）、Special 1b（1NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Rated current（AC1）、Current convention fever：20A
Current convention fever（Auxiliary contact）：10A
Giá: Liên hệ
Số lượng tồn: Liên hệ

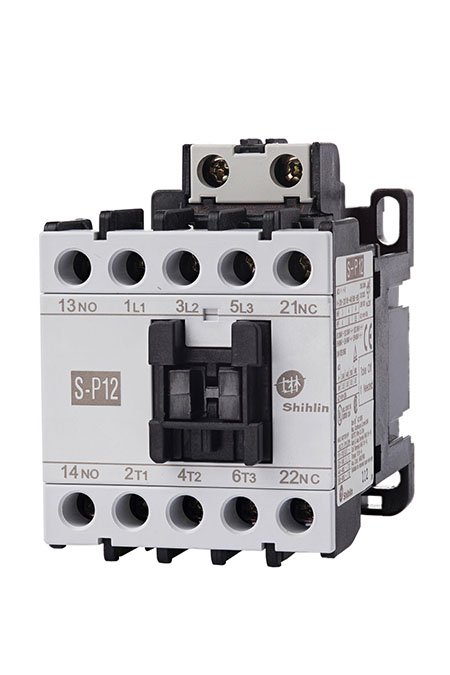

TYPE：S-P12
Rated Power/Current(AC3/3Φ380V)：5,5kW、7,5HP、12A
Auxiliary contact：Standard 1a（1NO）、Special 1b（1NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Rated current（AC1）、Current convention fever：20A
Current convention fever（Auxiliary contact）：10A
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P16
Rated Power/Current(AC3/3Φ380V)：7,5kW、10HP、16A
Auxiliary contact：Standard 1a（1NO）、Special 1b（1NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Rated current（AC1）、Current convention fever：20A
Current convention fever（Auxiliary contact）：10A
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P21A
Rated Power/Current(AC3/3Φ380V)：11kW、15HP、24A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P35T
Rated Power/Current(AC3/3Φ380V)：15kW、20HP、35A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ

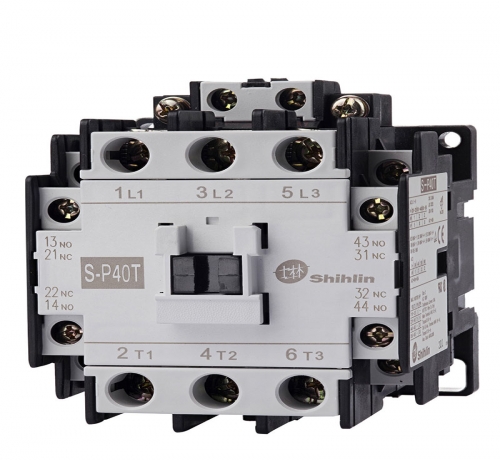

TYPE：S-P40T
Rated Power/Current(AC3/3Φ380V)：22kW、30HP、44A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P50T
Rated Power/Current(AC3/3Φ380V)：30kW、40HP、58A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P60T
Rated Power/Current(AC3/3Φ380V)：37kW、50HP、68A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P80T
Rated Power/Current(AC3/3Φ380V)：40kW、54HP、80A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P100T
Rated Power/Current(AC3/3Φ380V)：60kW、80HP、105A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P125T
Rated Power/Current(AC3/3Φ380V)：75kW、100HP、135A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
Giá: Liên hệ
Số lượng tồn: Liên hệ
TYPE：S-P150T
Rated Power/Current(AC3/3Φ380V)：90kW、125HP、160A
Auxiliary contact：Standard 2a（2NO）、Special 2b（2NC）
standard：GB 14048.4、IEC 60947-4-1、EN 60947-4-1、DIN VDE 0660
Rated insulation voltage：660V
Coil control voltage：AC12V~440V/50Hz、AC12V~480V/60Hz
Electrical Life/AC3：1.2 million times
Mechanical life：6 million times
